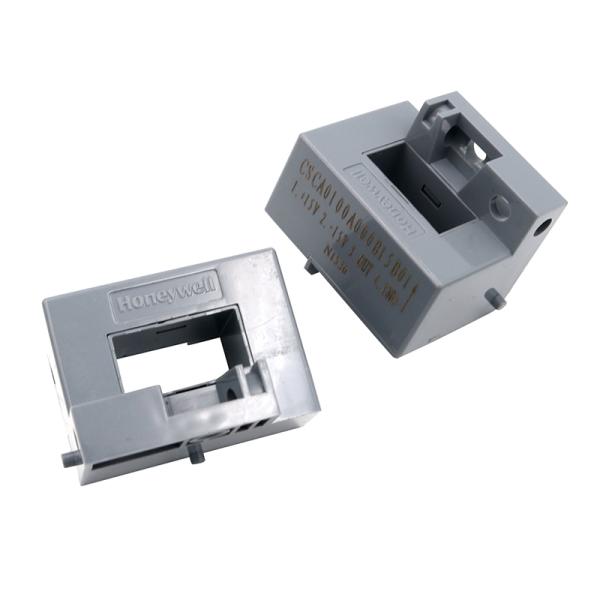

CSCA0100A000B15B01 Hall-effect Based Open-loop Current Sensor For UPS Communication Power Supplies

Model Number : CSCA0100A000B15B01

Place of Origin : USA

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 5-8 work days

Packaging Details : Standard packaging

Rated Current : 100A RMS (at 25℃)

Measurement Range : ±300A

Measuring Resistance : At 70℃

Analog Output Current : 25mA

Turn Ratio : 1000

Accuracy (at 25℃) : Max. ±0.5%

Contact Now

CSCA0100A000B15B01 Hall-effect Based Open-loop Current Sensor For UPS Communication Power Supplies

Product Details:

CSCA0100A000B15B01 is a Hall-effect based open-loop current sensor , The detailed specifications are as follows:

Basic Parameters:

  • Rated Current: 100A RMS (at 25℃).
  • Measurement Range: ±300A.
  • Measuring Resistance: At 70℃ (with ±15V, ±25A.t max): Min. 54ohm, Max. 360ohm.
  • Analog Output Current: 25mA.
  • Turn Ratio: 1000.
  • Accuracy (at 25℃): Max. ±0.5% (including zero offset effect).
  • Supply Voltage: ±12~15V (±5%).

Parameters:

  • Sensor Type: Hall effect, open-loop.
  • Output Type: Analog.
  • Output Resistance: >10k ohm.
  • Operating Temperature: -10℃ to 80℃.
  • Storage Temperature: -25℃ to 85℃.

Performance Features:

  • Based on Hall Effect Principle: Utilizes Hall effect devices, whose output voltage is linearly related to the amplitude and phase of the applied magnetic field, enabling accurate measurement of AC, DC, and pulse currents.
  • Low Power Consumption: Meets energy-saving requirements with low power consumption.
  • Good Electrical Isolation: Provides high-level electrical isolation between primary and secondary circuits for safe and reliable operation.
  • Fast Response Speed: Response time is typically in the microsecond range, enabling quick response to current changes.

Application Fields:

Suitable for variable speed drives, overcurrent protection, UPS and communication power supplies, current feedback control systems,

robotics,and other fields.

Packaging and Connection:

  • Adopts Molex-type connector for easy installation and connection.
  • Usually mountable via flanges, offering certain mechanical stability.

Sensor Type Hall effect, open-loop
Rated Current 100A RMS (at 25℃)
Measurement Range ±300A
Measuring Resistance At 70℃ (±15V, ±25A.t max): Min. 54ohm, Max. 360ohm
Analog Output Current 25mA
Turn Ratio 1000
Accuracy (at 25℃) Max. ±0.5% (including zero offset effect)
Supply Voltage ±12~15V (±5%)
Frequency Range DC ~ 50kHz
Response Time 3μs
Output Type Analog
Output Resistance >10k ohm
Linearity <±1%
Operating Temperature -10℃ to 80℃
Storage Temperature -25℃ to 85℃
