AWM5101VN Air Flow Sensor For Medical Devices Industrial Process Control Consumer Electronics

AWM5101VN Air Flow Sensor For Medical Devices Industrial Process Control Consumer Electronics

The AWM5101VN belongs to AWM5100 series, featuring a microbridge MEMS sensing element that detects mass flow directly without temperature or pressure compensation. It is optimized for clean, dry gases (air or non-corrosive gases) and delivers a linear analog output proportional to flow rate. With its compact surface-mount package and low power consumption, it is widely used in medical devices, HVAC systems, and industrial process control where space and energy efficiency are critical.

Key Features:

• Direct Mass Flow Measurement: Eliminates the need for additional temperature/pressure compensation, simplifying system design and improving measurement accuracy.
• Linear Analog Output: 0.5 V – 4.5 V signal range (0 flow = 2.5 V, bidirectional flow = ±2 V deviation) for easy integration with microcontrollers.
• Compact & Low Power: SMD package saves PCB space; low power consumption (typ. 60 mW) suits battery-powered devices.
• Bidirectional Flow Detection: Supports both forward and reverse flow measurement, expanding application flexibility.
• Robust MEMS Design: Honeywell’s microbridge technology ensures long-term stability and resistance to mechanical stress.

Typical Applications:

• Medical devices: Respirators, nebulizers, oxygen concentrators, and CPAP devices.
• HVAC & building automation: Air flow monitoring in ventilation systems and air purifiers.
• Industrial process control: Low-flow gas metering in precision manufacturing and analytical instruments.
• Consumer electronics: Gas flow detection in fuel cells and miniaturized air quality monitors.
• Automotive: Cabin air flow sensing (specialized variants) and emissions monitoring modules.

High Accuracy Air Flow Sensor

AWM5101VN Air Flow Sensor

5.0 Vdc Air Flow Sensor

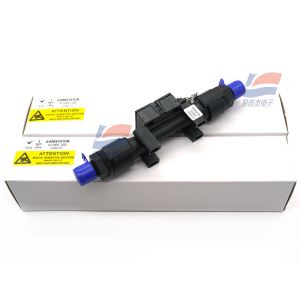

AWM5101VN Air Flow Sensor For Medical Devices Industrial Process Control Consumer Electronics Images
