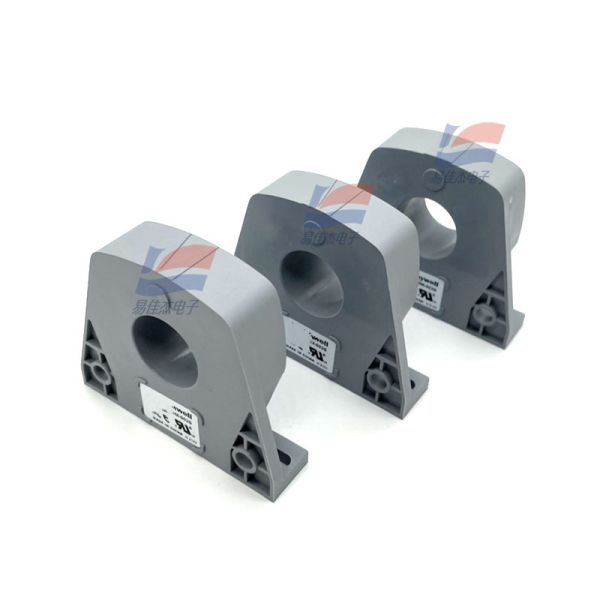

YJJ CSNS100M-002S Type Current Sensor With A Rated Current Of 100 Amperes Is Used In Industrial Automation

Brand Name : YJJ

Model Number : CSNS100M-002S

Place of Origin : USA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2200

Delivery Time : 5 to 8 working days

Packaging Details : Palletized

Rated current : 100A

Measurement range : DC/AC peak value can reach ±200A

Accuracy : Better than ±0.75% In

Response time : ≤ 500ns

Power supply voltage : ±12 to 18 VDC

Insulation performance : 6kVrms electrica

‌Bandwidth : DC to 150 kHz

Connection method : 4-pin connector

Contact Now

Product Description:

YJJ CSNS100M-002S Type Current Sensor With A Rated Current of 100 Amperes Is Used in Industrial Automation

Features:

CSN series closed-loop current sensors are measured based on magnetoresistance or hall effect, and zero equilibrium or zero flux methods.The magnetic flux in the sensor core will always be controlled at zero.The flux required to balance the zero flux is equal to the primary flux through the conductor multiplied by the ratio of primary to secondary turns.The output of the closed-loop current sensor is at any time equal to the primary current divided by the number of secondary coils.This current can be expressed as a voltage across a resistance.

Product characteristics

Current sensing up to 1275 A (depending on the product list)

Measure ac, dc and pulse currents

Very competitive cost performance

A quick response

High overload capacity

Excellent electrical isolation between primary and secondary circuits

Industrial operating temperature range

Small and light

Potential applications

Variable speed drive

Over current protection

Earth fault detector

Circuit feedback control system

The robot

UPS and telecom power

Welding power source

Automotive - battery management system

Power meter

Specifications:

Rated current 100A
Measurement range 0 to ±200A (peak value)
Accuracy Better than ±0.75%In (at 25℃)
Power supply voltage ±12 to 18VDC (±5%)

YJJ CSNS100M-002S Type Current Sensor With A Rated Current Of 100 Amperes Is Used In Industrial Automation
